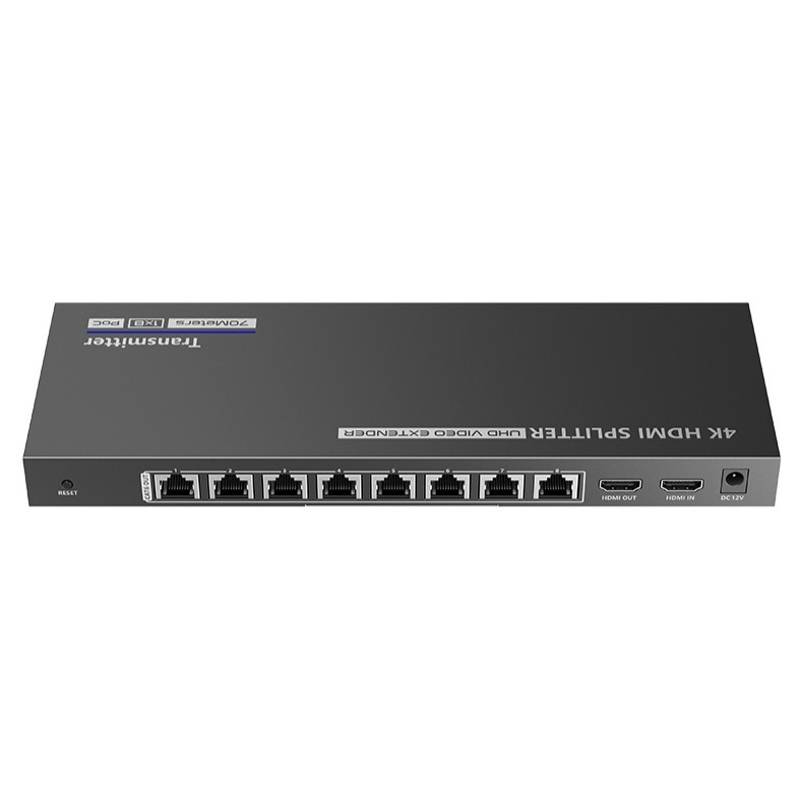

Lenkeng LKV728P | 1x8 HDMI Splitter with Extender

Previous productAlfatron IP2HE | AV over IP...

Next productRode SC2 | 3.5mm TRS Patch ...

Manufacturer: Lenkeng

SKU: CNVLKV728P

Stock Availability

East London Store	Request Pricing & Availability
PE Store	Request Pricing & Availability

Price: R6 990,00

Old price: R8 995,00

This product is a 1 input 8 outputs splitter extender kit, It distributes 1 HDMI™ input signal to 8 identical signal outputs, extends these signals up to 70 meters. support 4K30Hz resolution, bi-directional IR passthrough, RS-232 control and 3.5mm L/R audio output functions.It is suitable for outdoor advertising, studios, multimedia classrooms, etc.

Qty:

+ -

Compatibility

HDMI 1.4，HDCP1.4

Resolutions

800x600、1024x768、1280x720、1280x960、 1366x768、 1440x900、1680x1050、1920x1080、 480i@60Hz、 480p@60Hz、576i@50Hz、 576p@50Hz、720p@50/60Hz、1080i@50/60Hz、 1080p@24/25/30/50/60Hz、4K@24/25/30Hz

Audio Formats

PCM、LPCM、DTS-HD、DTS-Audio Dolby Digital 5.1CH、Dolby TrueHD 5.1CH

Transmission distance

CAT6/6A/7
1080p@60Hz≤70 meters
4K@30Hz≤40 meters

IR Passback

Bi-directional IR passback (20-60khz)

RS-232

3Pin：GND-RxD-TxD，follows RS-232 levels
Default baud rate：9600

Working temperature

-20~60℃

Storage temperature

-30~70℃

Humidity

0~90% RH

Protection

ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection
Surge protection

Power Supply

TX: DC12V/5A
RX: DC5V/1A

Power Consumption

TX＜34W RX＜2.5W

Housing

Iron

Color

Black

Weight

TX: 615g
RX: 160g x8

Dimensions

TX: 272.0(L) x 96.5(W) x 23.0(H) mm
RX: 75.0(L) x 80.0(W) x 18.0(H)mm

Mode

1 input, 8 output
