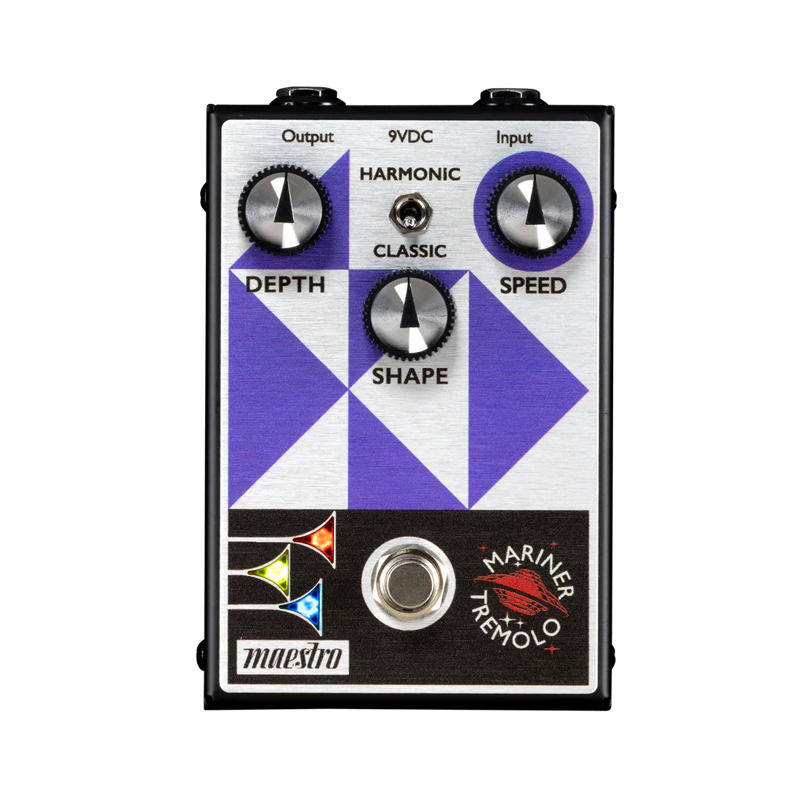

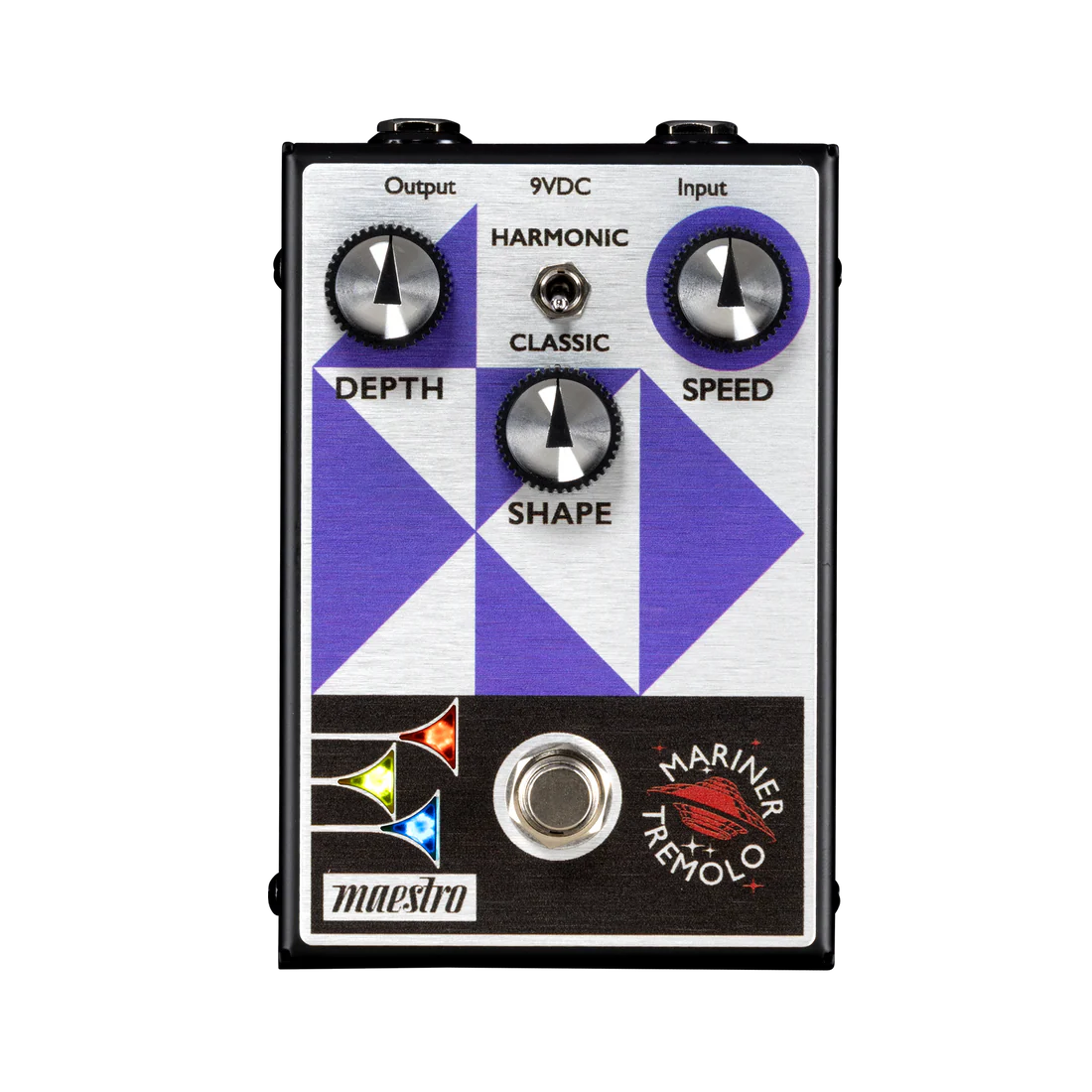

Controls1:Depth, Shape, and Speed
Current Draw:41.9 mA
Dimensions:5.04"in x 3.45"in x 2.50"in (128.0 mm x 87.6 mm x 63.5 mm)
Input Impedance:320 kOhms
Led Indicators:Red, yellow, and blue bugles in the Maestro logo illuminate when the pedal is active
Output Impedance:1 kOhm
Power On Switch:Incorporated into the input jack. Unplug the input when not in use to prevent battery drain. Remove the battery when the pedal is going to be stored for long periods to prevent leakage and damage.
Power Requirements:9V battery or regulated 9VDC power supply (5.5 x 2.1 mm plug, wired center-negative)
Signal Processing:All-Analog
Switches:True Bypass footswitch, Harmonic/Classic Mode toggle switch
Switching Type:True Bypass
Weight:Net: 1.19 lb. (539.8 gm.) Gross: 1.56 lb. (707.6 gm.)
Model:MOCMTP
