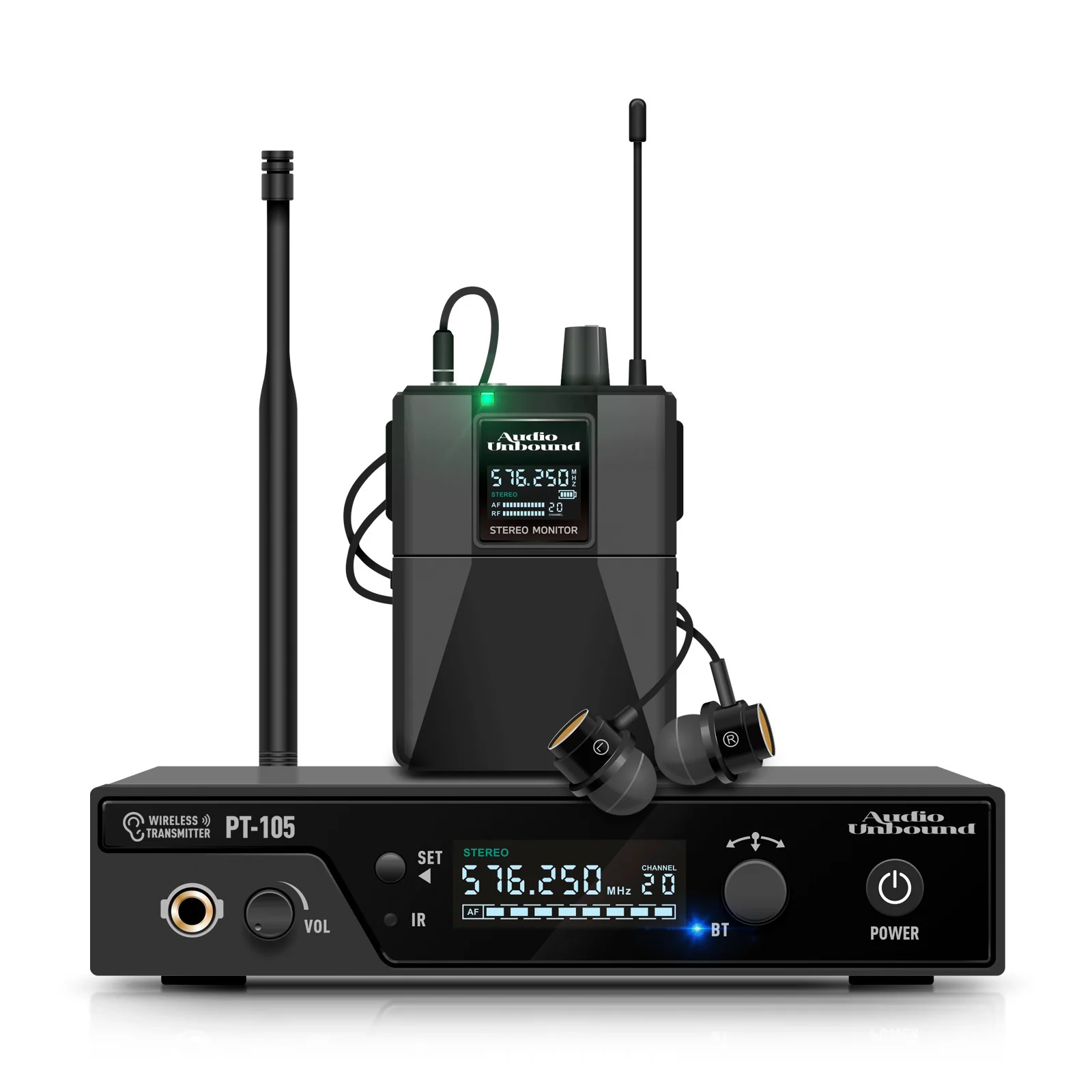

Audio Unbound ProTone PT-105 | Wireless In-Ear Monitoring System

Key Features:

• Crystal-Clear Sound: The advanced digital chip ensures superior sound fidelity, minimizing background noise for an immersive listening experience.
• UHF Signal Transmission: Offers unmatched stability and efficiency with an extended range of up to 300m in open environments.
• Bluetooth 5.0 Integration: Enjoy high-quality, near-lossless music playback for click tracks, backing tracks, and more.
• Mono and Stereo Modes: Tailor your audio to suit diverse performance needs.
• Versatile Connectivity: Compatible with XLR, 6.35mm (1/4"), and 3.5mm (1/8") inputs to integrate seamlessly with your setup.
• Compact and Lightweight Design: The receiver is easy to carry, with dual 3.5mm outputs for added flexibility.
• Built for Any Environment: Perfect for live stage performances, studio recording, and band rehearsals.

Wireless System Specifications

• Frequency Range: 530~580MHz
• Audio Sampling Depth: 24-bit, 44.1kHz
• Latency: Ultra-low 0.3ms
• Wireless Channels: 100 selectable channels
• Audio Frequency Response: 20~18,000 Hz
• Signal-to-Noise Ratio (SNR): ≥85dB
• Dynamic Range: 95dB
• Channel Separation: 75dB
• Total Harmonic Distortion (T.H.D.): <0.1%
• Transmission Range: 80m indoors, up to 300m in open environments

Transmitter

• Frequency Stability: ≤10ppm
• Output Power: 10mW
• Operating Current: 160mA
• Power Requirement: 12V, 500mA (DC)
• Inputs: XLR, 6.35mm, and 3.5mm
• Display: Multifunctional LCD for real-time monitoring

Receiver

• Frequency Stability: ≤10ppm
• Sensitivity: ≤-95dBm
• Power Requirement: 2x AA batteries (6-8 hours runtime)
• Operating Current: 130mA
• Outputs: 1 x 3.5mm stereo headphone, 1 x 3.5mm auxiliary

What’s Included

• 1 x PT-105 Transmitter
• 1 x Compact Receiver
• 1 x Power Adapter (12V DC)
• 1 x High-Performance Antenna
• 2 x 1/4" cables
• 1 x User Manual
