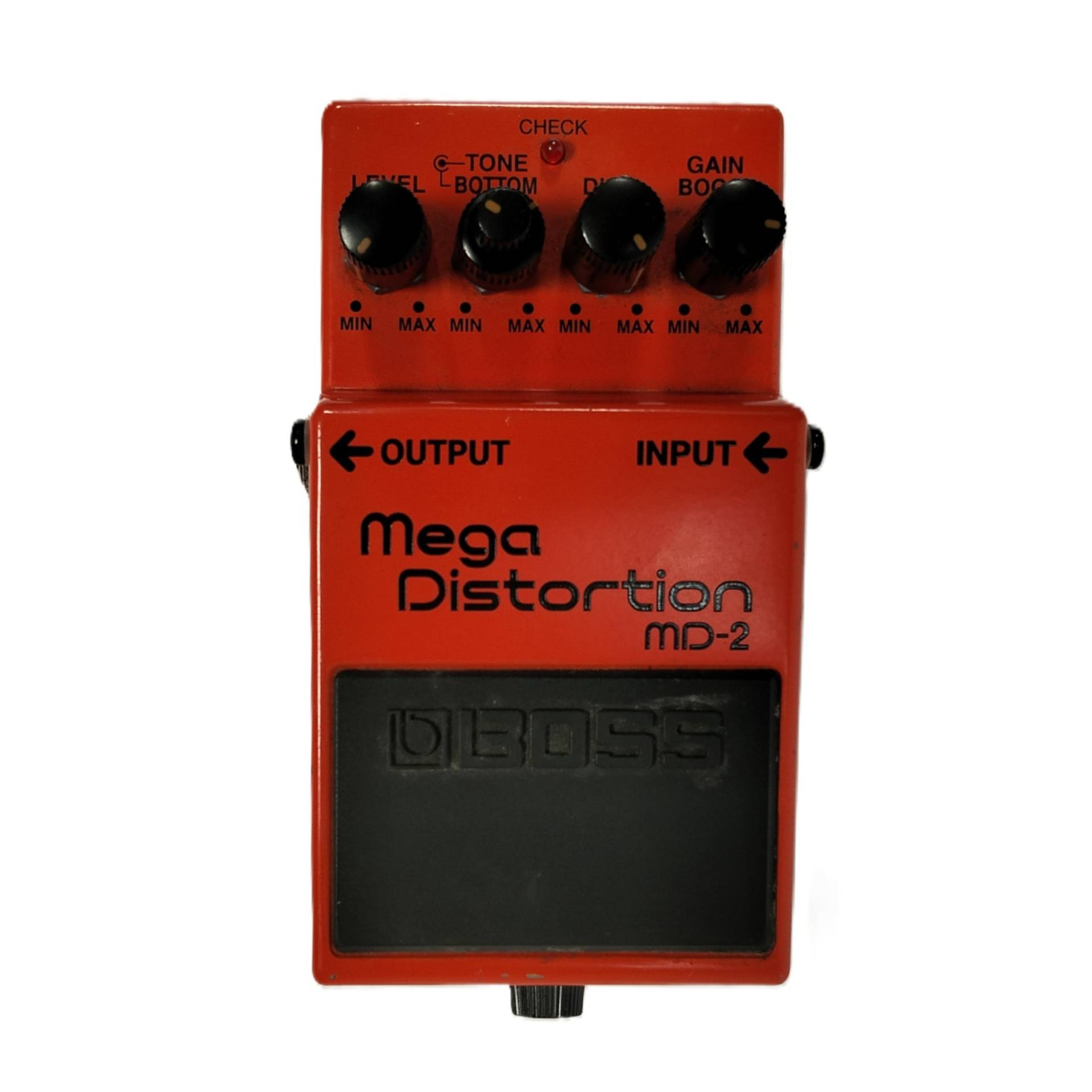

Boss MD-2 | 2nd Hand Mega Distortion Pedal

Specs:

Nominal Input Level - -20 dBu

Input Impedance - 1 M ohm

Nominal Output Level -20 dBu

Output Impedance - 1 k ohm

Recommended Load Impedance - 10 k ohms or greater

Bypass - Buffered bypass

Controls

GAIN BOOST knob
DIST knob
TONE/BOTTOM knob
LEVEL knob
Pedal switch

Indicator

CHECK Indicator (Used for indication of check battery)

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply

Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw

20 mA

Expected battery life under continuous use

Carbon: Approx. 16 hours
Alkaline: Approx. 30 hours
* These figures will vary depending on the actual conditions of use.

Accessory

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)

Options (sold separately) - AC Adaptor: PSA series

Size and Weight

Width 73 mm - 2-7/8 inches

Depth - 129 mm - 5-1/8 inches

Height - 59 mm - 2-3/8 inches

Weight (including battery) - 395 g - 14 oz
