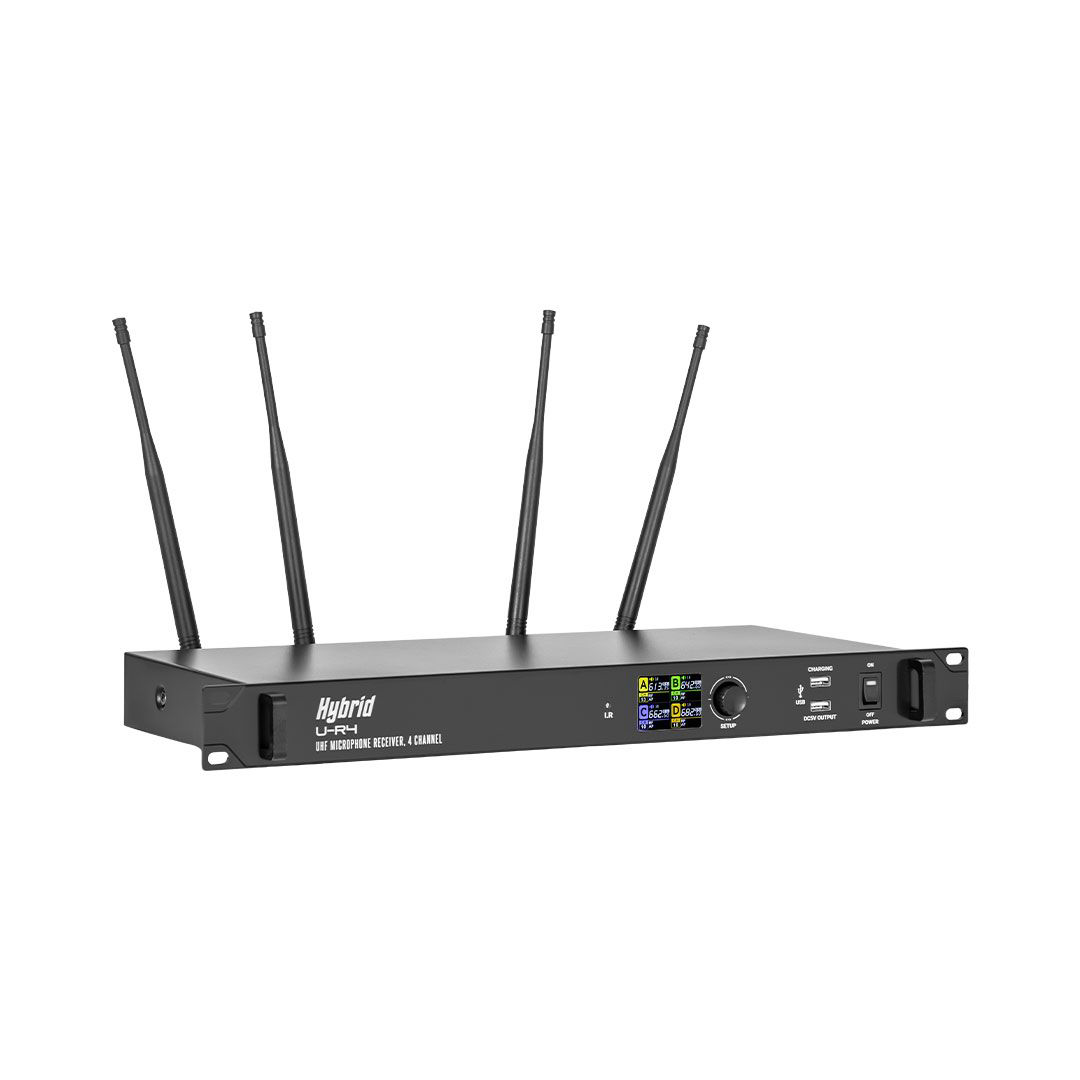

Hybrid + U-R4 | 4 Channel UHF Microphone Receiver

Hybrid + U-R4 | 4 Channel UHF Microphone Receiver

Hybrid + U-R4 | 4 Channel UHF Microphone Receiver

Hybrid + U-R4 | 4 Channel UHF Microphone Receiver

Hybrid + U-R4 | 4 Channel UHF Microphone Receiver

Previous productToa PM-222 EU | Paging Micr...

Next productHybrid + U-R4/C | Wireless ...

Be the first to review this product

Manufacturer: Hybrid

SKU: UR4

Stock Availability

East London Store	3
PE Store	Request Pricing & Availability

Price: R2 900,00

Old price: R3 695,00

Compatible With The Following Items:

Hybrid U-R4/HH Wireless Handheld Mic Available HERE

Hybrid+ U-R4/HS-C Headset (Cream) Available HERE

Hybrid + U-R4/BP Wireless Belt Pack transmitter Available HERE

Hybrid + U-R4/C | Wireless Conference Mic Available HERE

Hybrid+ U-R4/LAP Lapel Microphone Available HERE

Qty:

+ -

Specifications

Frequency range: UHF 470 – 786 MHz
Frequency response: 40 Hz – 18 kHz
Frequency stability: ±0.005 %
Modulation mode: Wide-band FM
Modulation range: 25 MHz
Channels: 50 RF channels per microphone
Working distance: 40 m
Channel spacing: 250 kHz
Dynamic range: 100 dB
Maximum deviation: ±45 kHz
AF response: 65 Hz – 15kHz (±3 dB)
THD: <0.5 %
Balanced audio output: ±500 mV
Power supply input: 220 – 240 VAC, 50/60 Hz DC
Power supply output: 13 – 15 VDC, 2000 mA
Power consumption: 30 W
S/N ratio: >98 dB
P/N ratio: >80 dB
F/N ratio: >80 dB
Sensitivity: 5 dBu
Weight: 1.5 kg
Dimensions (H x W x D): 50 x 480 x 190 mm
