Features
• D-size feed through pedestal
• ROXTONE brand engraved on the housing
• Patent-protected
| Technical Data |
|
| Housing |
Zinc alloy diecast |
| Insert |
PA6 30%GF |
| Power Supply |
5V / 1.5A |
| Insulation Resistance |
>500MΩ |
| Dielectric Strength |
1KV dc |
| Contact-Plating |
Gold 6μ |
| |
|
| Order Code |
Description |
| RAE8FD-C6 |
Feed through chassis RJ45 (CAT6) adapter, Nickel plated housing |
| RAE8FD-C6-B |
Feed through chassis RJ45 (CAT6) adapter Black housing |

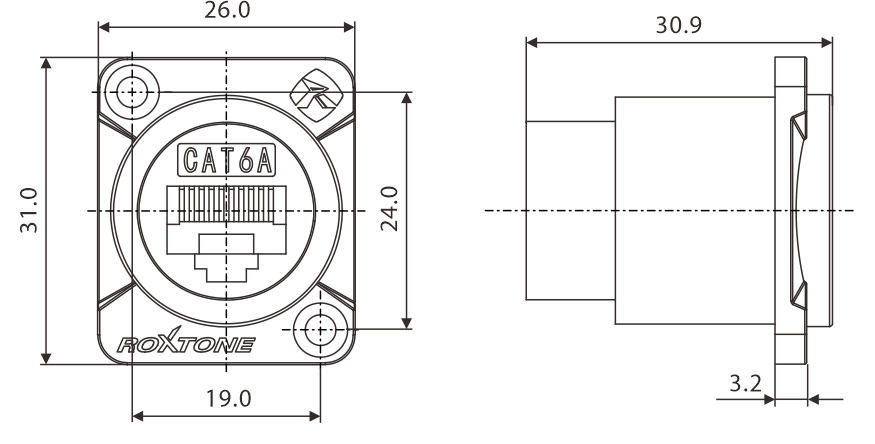

Engineering Drawing
