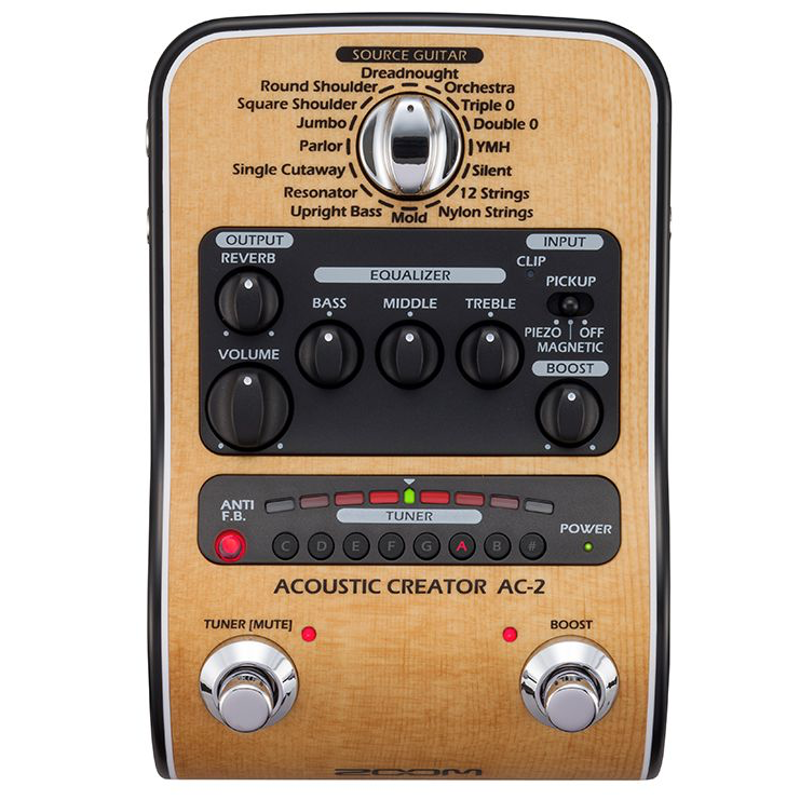

Zoom AC-2 | Acoustic Creator DI Box Pedal

Previous productZoom A1x Four | Acoustic Mu...

Next productZoom A1 Four | Acoustic Ins...

Be the first to review this product

Manufacturer: Zoom

SKU: AC2ZOOM

Stock Availability

East London Store	Request Pricing & Availability
PE Store	1

Price: R3 650,00

Old price: R4 995,00

Amplify your acoustic sound with the Zoom AC-2 Acoustic Creator. The AC-2 is a DI (direct box) that encompasses all you need to deliver natural guitar tone on stage or in the studio. The AC-2 automatically restores tone lost through acoustic pickups, so your sound is always lush, resonant, and faithful to the instrument you have in hand.

Qty:

+ -

Feature List:

16 source guitar type/body presets for accurate tone reproduction
¼” input
XLR balanced out
Two ¼” outputs for mono or stereo connection to guitar amps, headphones,and audio interfaces
Reverb effect
High-quality, low noise preamp
Piezo/magnetic input pickup select
3-band equalizer
Input and output gain/sensitivity adjustablevia single volume knob (patent pending)
Anti-feedback control
Boost switch for up to 9 dB of additional gain
Built-in chromatic visual-LED tuner
USB connection for firmware updates
Dual output jacks for connection to guitar amps and mono or stereo PA systems
Three power options: 2 x AA batteries, the included Zoom AD-16 power adapter (9V DC in), or bus power via micro-USB port

Specs

General

Source Guitars:	16 Types
Sampling frequency:	44.1 kHz
A/D conversion:	24-bit with 128x oversampling
D/A conversion:	24-bit with 128x oversampling
Signal processing:	32-bit
Frequency characteristics:	20 – 20 kHz +1 dB, -3 dB (10 kΩ load)

INPUTS

Input:

Standard monaural phone jack Rated input level: -20 dBu* Input impedance: 10 MΩ

OUTPUTS

1/Mono/Phones:	Standard stereo phone jack (combined line/headphones)Maximum output level: Line +7 dBu* (10 kΩ or more) Stereo mini jack (3.5 mm) Headphones 8 mW + 8 mW (into 32 Ω load)
2:	Standard mono phone jack Maximum output level: Line +7 dBu (10 kΩ or more output impedance)
Balanced Output:	XLR jack Output impedance: 100 Ω (HOT-GND, COLD-GND), 200 Ω (HOT-COLD) PRE/POST (switchable) GND LIFT (switchable)

Additional Specifications

Equivalent input noise:	120 dBu*
Noise floor (residual noise):	-100 dBu
Power:	AC adapter DC9V, 500 mA center negative (ZOOM AD-16) Batteries: 2 AA (about 3 hrs continuous
USB:	USB MIDI USB Micro-B
Dimensions:	158 mm (D) X 107 mm (W) X 52 mm (H)
Weight:	0.570kg / 1.26 lbs

	* 0 dBu=0.775 Vrms
