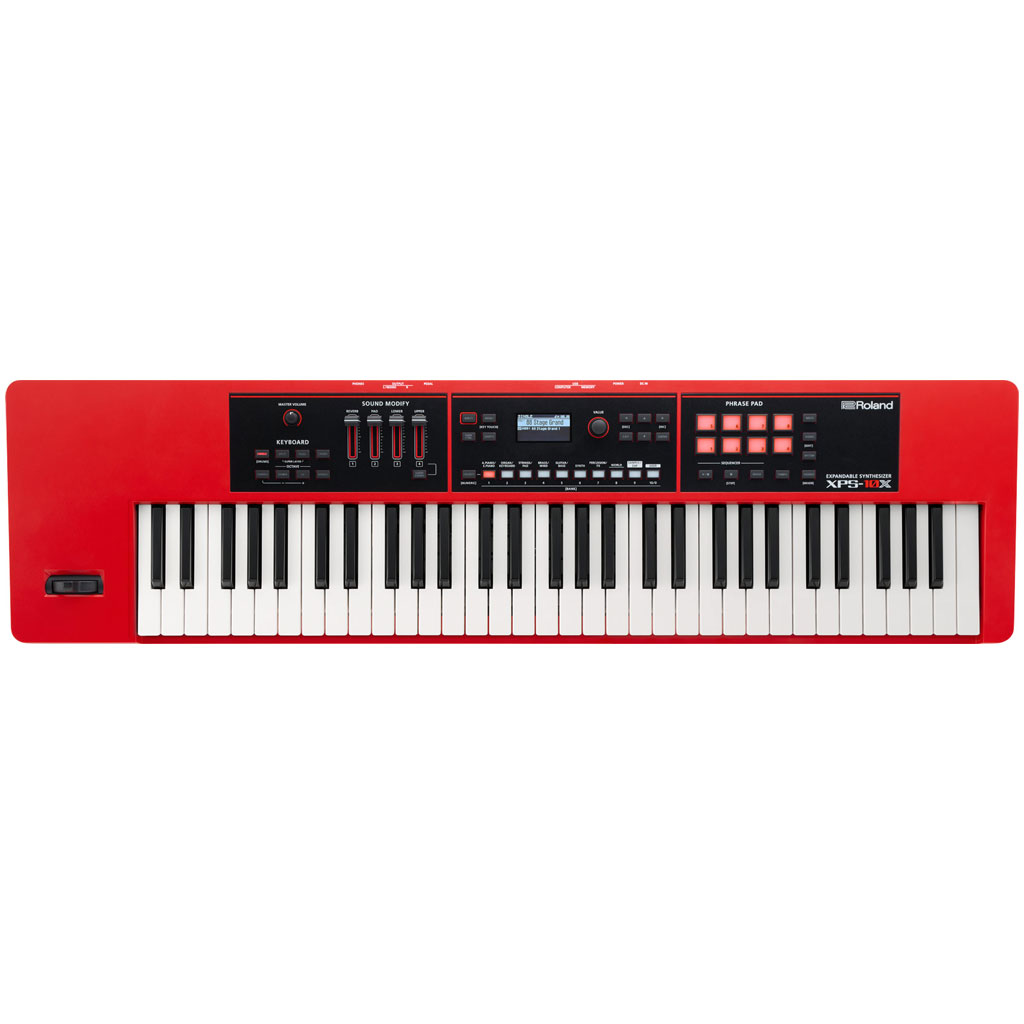

Roland XPS-10X Expandable Synthesizer at a Glance
- Pro performance keyboard with a diverse selection of high-quality sounds for live and studio playing
- Includes a wide range of ethnic sounds, plus a User Scale function for creating regional tunings
- Sample Import function allows users to import and play custom sounds from the keyboard
Acclaimed Roland Sounds
The XPS-10X features over 1600 diverse sounds from the core XPS-60 library, including pianos, organs, guitars, basses, orchestral instruments, synths, drums, and more. In addition, there are many folk instrument selections to perform with authentic local sounds from regions around the world.
Add Global Instruments with the World Expansion Series
The XPS-10X also supports region-specific sound collections from the World Expansion series on Roland Cloud. Each title includes new waveforms and tone data, allowing you to discover rare instrument sounds from India, Mexico, South America, Southeast Asia, and more. World Expansions can be purchased and installed via Roland Cloud Manager on a computer or the XPS Tone Loader app for mobile devices..
Portable Inspiration
Like all instruments in the XPS series, the XPS-10X delivers excellent playability in a robust and rugged design. The expressive 61-note keyboard offers outstanding feel, and you can power the instrument with a rechargeable mobile battery for the ultimate grab-and-go convenience.
Free-Flowing Sound Creation
With its ergonomic panel layout, performing and composing with the XPS-10X is a joy. Call up tones with intuitive category buttons and set up favorites for quick access. Split and layer tones, change the octave range and transposition, and apply arpeggio and chord memory functions with quick button presses. When you’re done, save the complete setup within a Scene memory for one-touch recall on stage.
Perform with Backing Music
The XPS-10X’s Audio Player function makes elevating your performances with backing music easy. Connect a USB flash drive with your WAV/AIFF audio files, assign them to the eight phrase pads, and launch them as you play. Pitch and playback speed are independently adjustable for each file, allowing you to match a vocalist’s singing range or change the tempo to suit the mood.
Multi-Function Phrase Pads
Along with song playback, the XPS-10X phrase pads can trigger onboard drum sounds or imported samples in real time. You can also use them as part select and part mute buttons while working with the step sequencer.
Accessible Scale Settings
Just like the XPS-60, the XPS-10X allows you to set the optimal scales for each tone individually so they’re ready to play when needed. When Transpose Sync is enabled, your custom scale settings will automatically follow the current keyboard transpose button setting.
Step Sequencer
The eight-track step sequencer is ideal for sketching song ideas and creating interactive backing with the XPS-10X’s onboard sounds. The arpeggio function and built-in rhythms automatically synchronize with the sequencer, ready to bring fresh energy to your keyboard performances.
Connect with Computers and Mobile Devices
The XPS-10X’s class-compliant USB-C audio/MIDI interface lets you perform and record with music apps or stream gig audio via your phone. And with integrated computer DAW control, you can operate functions in your favorite software platform from the XPS-10X panel. The XPS Tone Loader app also communicates via USB-C, allowing you to purchase and install World Expansion titles using your smartphone or tablet.
Specifications
- Keyboard 61 keys (with velocity)
- Sound Generator Parts 8
- Tones
- 1,600 tones or greater
- 55 Drum kits or greater
- Expansion
- EXZ World Expansion Series
* The expansion are rewritable internal sound generator memory.
You can download data from the Roland Cloud and write it via a USB flash drive into the internal memory.
Maximum number of Expansions: 3
* Depends on size of Expansion titles - Sample Import
- Audio file: WAV
File format: 44.1/48 kHz, 16/24 bits
Approximately 12 minutes of samples can be used in total.
Up to 3 minutes of stereo per sample (44.1 kHz, 16 bits)
* Share with Expansion titles - Preset Scene
- 1,600 scenes or greater
- User Scene
- 256
- Scene Remain
- Yes
- Favorite
- 100
- Effects
- Multi-Effects: 8 systems, 93 types
Part EQ: 8 systems
Drum Part COMP: 6 systems
Insertion Effect: 1 system, 93 types
Chorus: 10 types
Reverb: 8 types
System EQ: 1 system - Step Sequencer
- Step Sequencer
- 8 Tracks (per scene)
Maximum 64 steps
Recording Method: Realtime recording, Step recording, TR-REC
Editing Method: Step edit - Audio File Player Section
- Audio File Player Section
- Audio file: WAV, AIFF
File format: 44.1/48 kHz, 8/16/24 bits
Speed/Pitch Control: Yes - Other
- Rhythm pattern
- Yes
- Arpeggio
- Yes
- Chord Memory
- Yes
- Controllers
- Pitch Bend/Modulation lever
Slider x 4
2 x 4 Pads - Display
- Graphic LCD (128 x 64 dots with backlight)
- Connectors
- PHONES jack: Stereo miniature phone type
OUTPUT jacks (L/MONO, R): 1/4-inch phone type
PEDAL jack
USB MEMORY/EXT DEVICE port: Type-A (Storage, MIDI)
USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI) - External Memory
- USB flash drive (sold separately)
- Power Supply
- AC Adaptor
USB bus power supply (USB Type-C(R) port)
* External power supply from a USB Type-A port isn’t available. - Current draw
- 500 mA (AC adaptor)
1,400 mA (USB bus power supply) - Power consumption when in OFF mode (when the power automatically turns off)
- 0.2 W
- Accessories
- Startup Guide
Leaflet “USING THE UNIT SAFELY”
AC adaptor (PSB-5U)
Power cord - Options (sold separately)
- Keyboard Stand: KS-11Z, KS-13
Pedal Switch: DP-2, DP-10
Expression Pedal: EV-5 - Size and Weight
- Width
- 1,002 mm
39-1/2 inches - Depth
- 268 mm
10-9/16 inches - Height
- 93 mm
3-11/16 inches - Weight
- 4.6 kg
10 lbs 3 oz
